PEB 100 ft × 200 ft — HR Material Takeoff & Material Purchase BOQ
PEB 100 ft × 200 ft — HR Material Takeoff & Material Purchase BOQ
Single-span PEB marquee/warehouse, 100 ft frontage (clear span) × 200 ft depth (30.48 m × 60.96 m), eave 20 ft, roof slope 1:10, 11 portal frames at 20 ft bays. Bare-shell scope (structural steel + PPGI roof + brick walls + RCC/PPGI foundations + doors).
Primary frame = fabricated plate I-beam 500 mm, 5 mm web / 8 mm flange. Z200×75×16 ga purlins. 18″×18″×25 mm base plates. 4 mm gusset/cleat. PPGI 0.5 mm roof + 25 mm glasswool (130 rolls).
⚠ PROTOTYPE — figures per client-specified plate sizes. No engineering/PE approval. Preliminary takeoff.
| File | Type | Link |
|---|---|---|
| HR Material Takeoff (initial) | Steel takeoff | XLSX · CSV · MD |
| Material Purchase BOQ (standard specs) | BOQ | XLSX · CSV · MD |
| Material Purchase BOQ (REVISED specs)prototype | BOQ | XLSX · CSV · MD |
| Structural Supply BOQ (Chairman rates)PKR 12.14 M | Supply BOQ | XLSX · CSV · MD |
| Drawing Set (5 sheets, A3 PDF) | GA Set | |

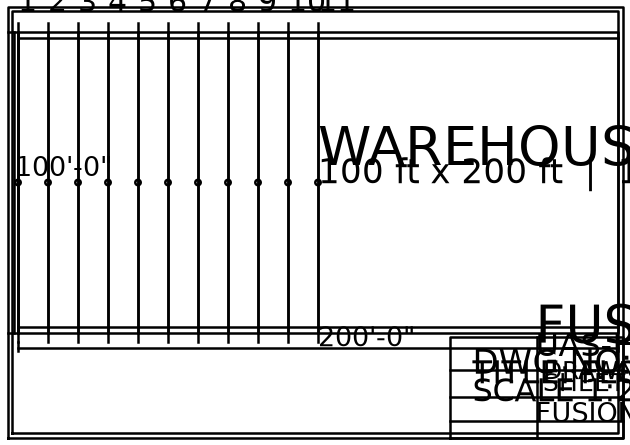

| Floor Plan (A-100) | 2D | PNG · DXF |

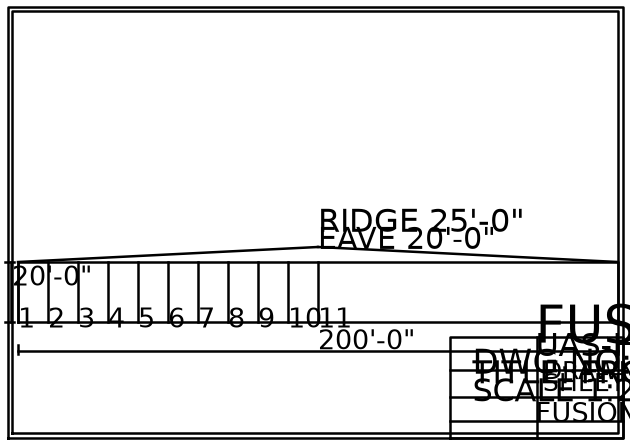

| Front Elevation (A-200) | 2D | PNG · DXF |

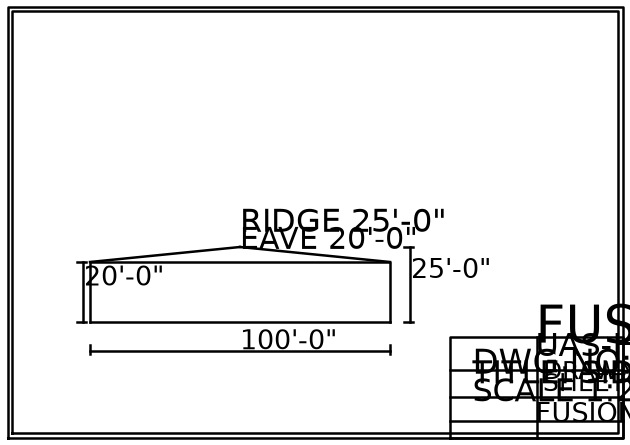

| Side Elevation (A-300) | 2D | PNG · DXF |

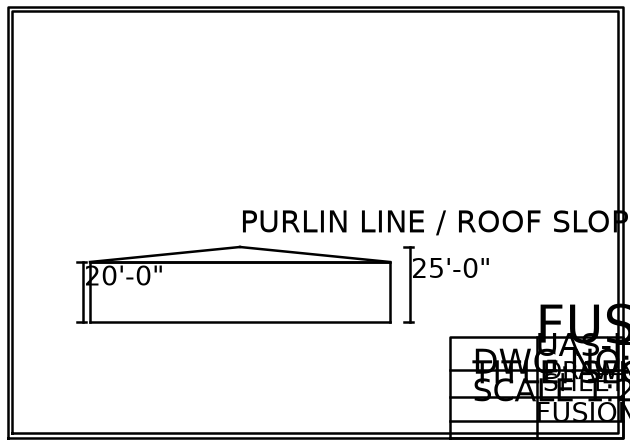

| Section A-A (A-400) | 2D | PNG · DXF |

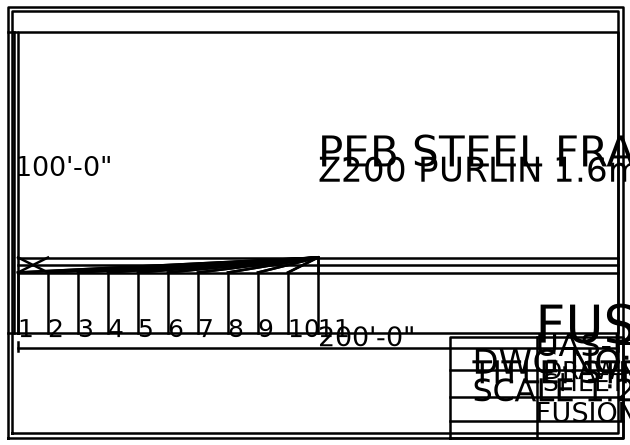

| Structural G.A. (S-100) | 2D | PNG · DXF |
| Interactive 3D Viewer (Canvas-2D, no CDN) | 3D | Open |
